Adding from the Activities Tree

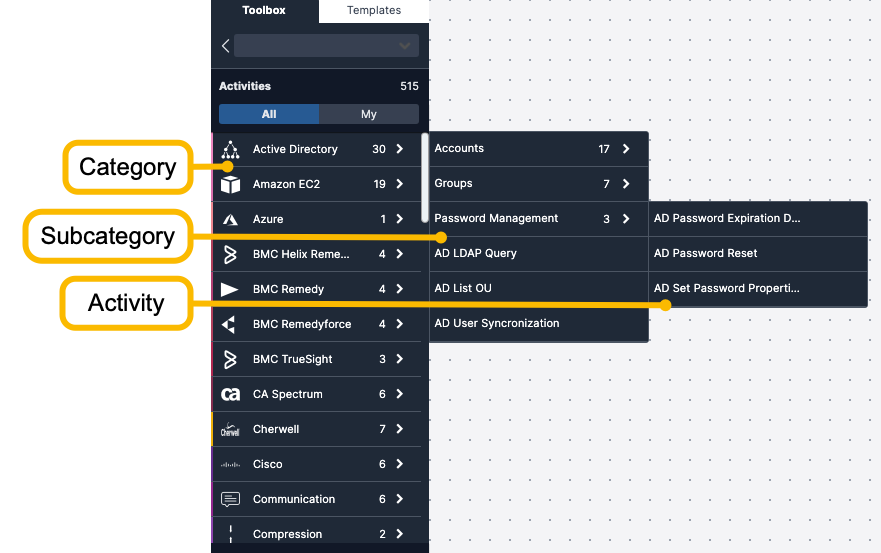

The Activities tree, in the upper-left corner of the Workflow Designer, lists all activity categories alphabetically. Each category shows:

  • A unique icon (left of the name)
  • A color code (left of the icon)
  • The number of activities in that category (right of the name)

When an activity is added to a workflow, its category color appears in the upper-right corner of the activity element, helping you visually identify its origin.

Many categories are divided into subcategories to organize large sets of activities by type. For example, the Active Directory category contains 30 activities grouped into subcategories like Password Management.

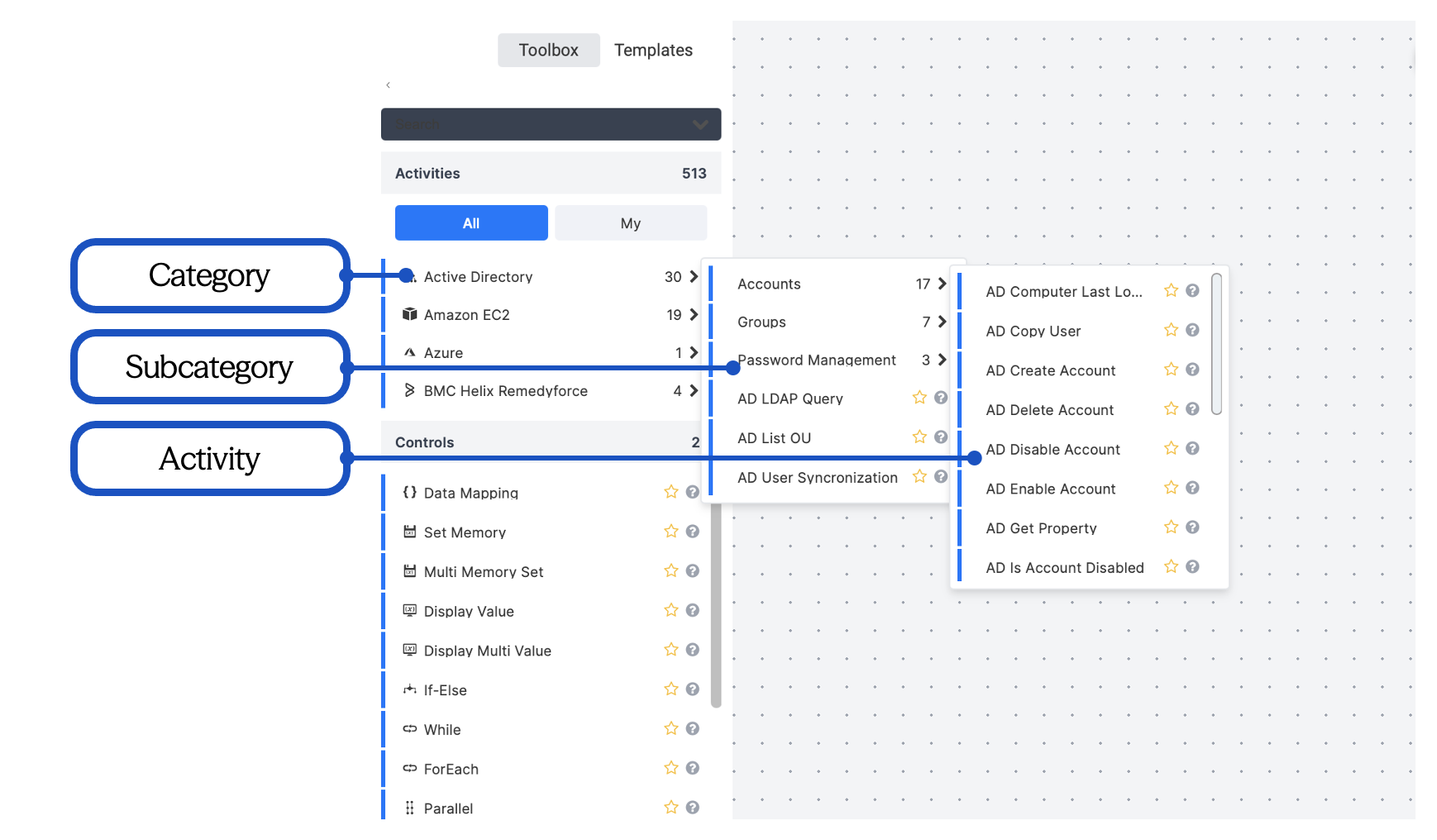

Workflow Designer Activities Panel

Adding an Activity​

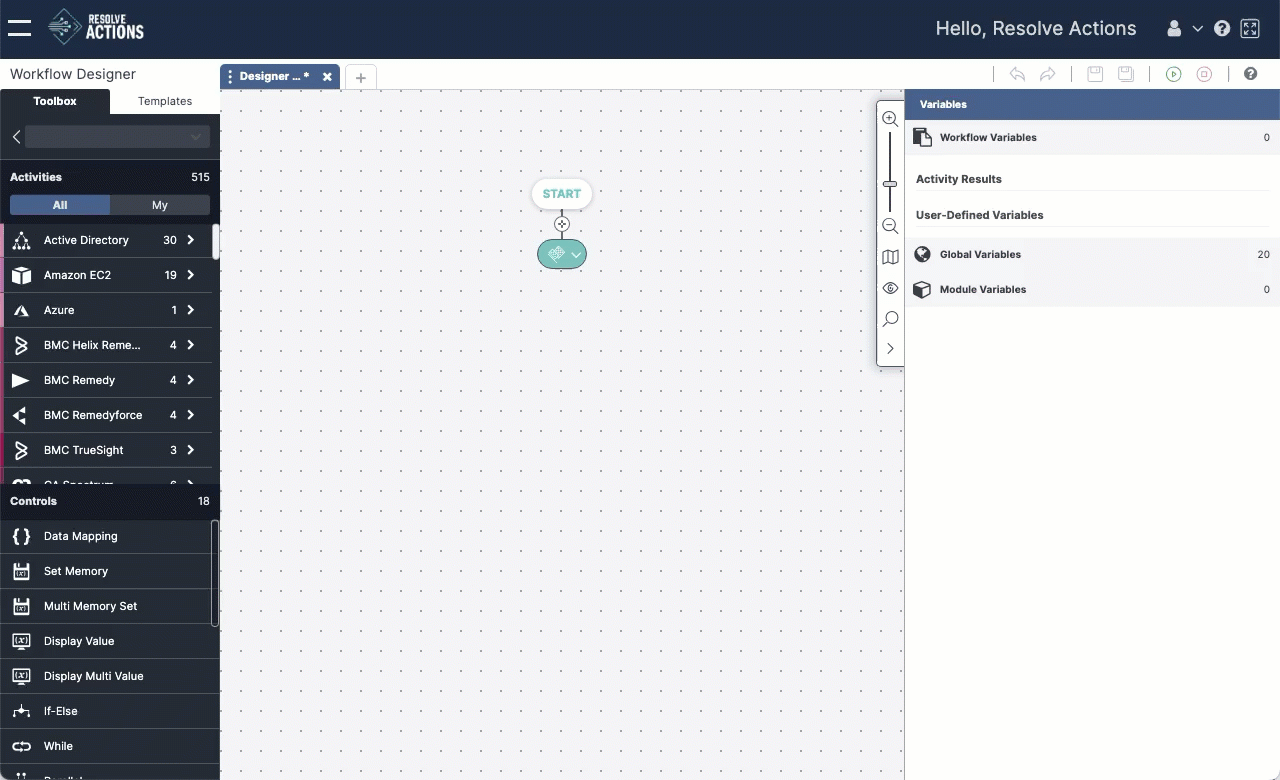

To add an activity from the Activities tree:

  1. Expand the category (and subcategory, if needed) to locate the activity.
  2. Drag and drop the activity onto the canvas.
    1. Hover over the activity until the crosshair cursor appears.

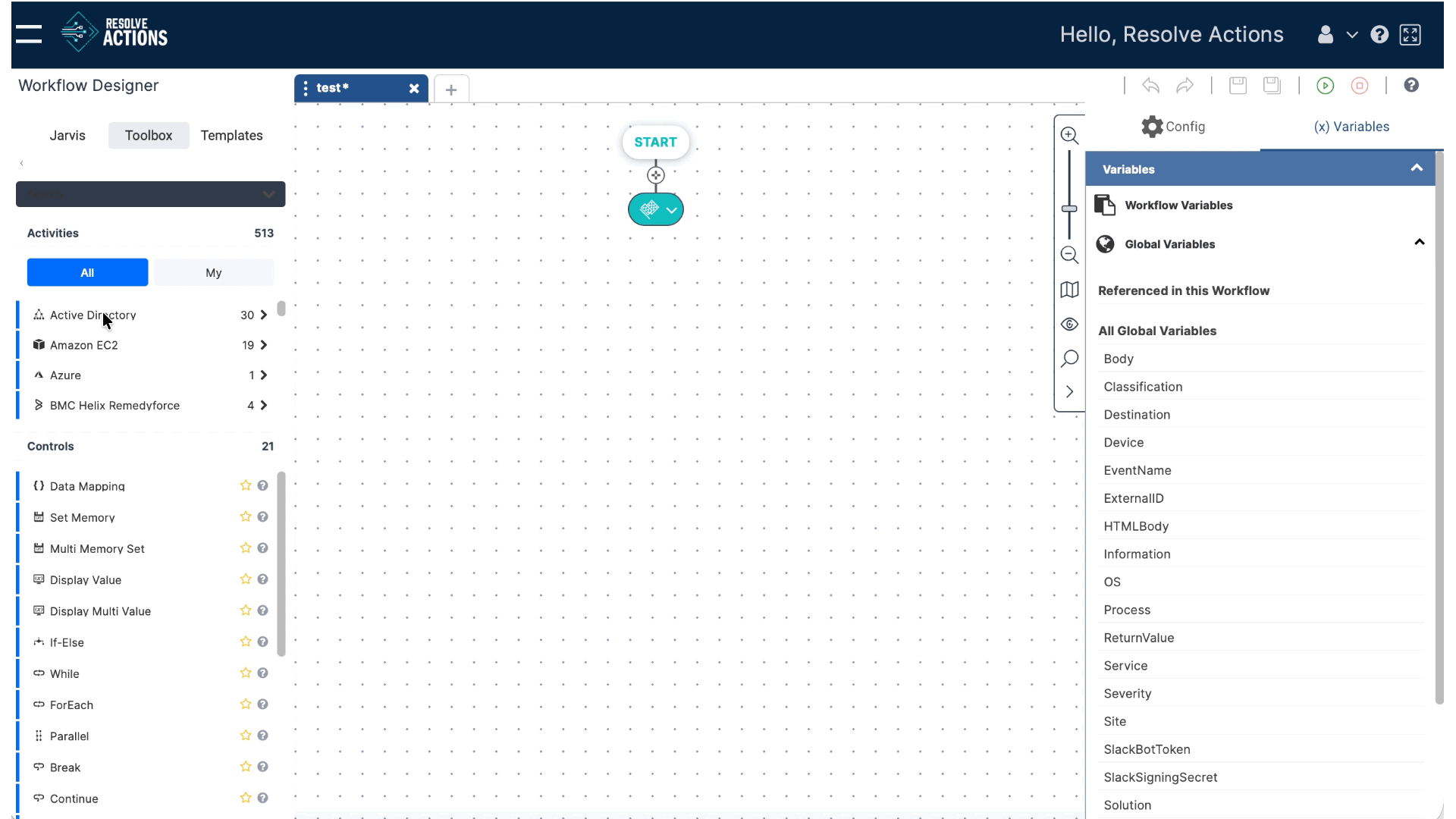

    2. Drag it to a position marked by crosshair nodes Crosshair. Workflow Designer Add_Activity_Draganddrop
      If placed incorrectly, simply drag the activity to the correct spot.
  3. Configure the activity settings.
